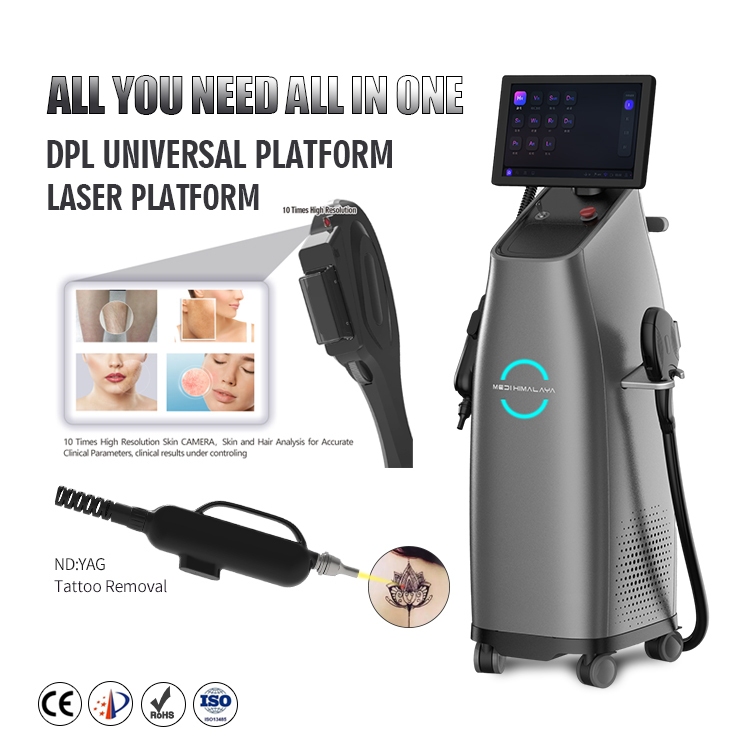

2 in 1 Multifunction DPL + Nd Yag Laser
This 2-in-1 beauty device combines ND YAG laser and photon technology to meet various treatment needs, making it a perfect choice for salons. With 2 specialized handpieces, you can seamlessly switch between:
1.Photon Technology:
Hair Removal
Skin Rejuvenation
Pigmentation Correction
Acne Therapy
2.ND YAG Laser:
Tattoo Removal
Pigmentation Treatment
Carbon peeling
Working Principle
1.Photon Technologyis based on selective photothermolysis. Its core mechanism involves using broad-spectrum, high-intensity pulsed light to target specific structures in the skin (such as melanin and hemoglobin). These targets absorb the light energy, convert it into heat, and are precisely destroyed—breaking down pigment particles, sealing blood vessels or hair follicles—while simultaneously stimulating collagen regeneration. This process effectively achieves multiple goals, including fading pigmentation, reducing redness, hair removal, and skin rejuvenation.
2.ND YAG lasers utilize the principle of “photomechanical disruption.” The laser emits high energy instantaneously, causing pigment particles to absorb the laser energy and rapidly expand and break down. Some of these particles break down into tiny fragments and are expelled from the body, while the rest are phagocytosed by the body’s phagocytes and eliminated through the lymphatic system, thus achieving the goal of gradually lightening or even completely eliminating pigmentation.

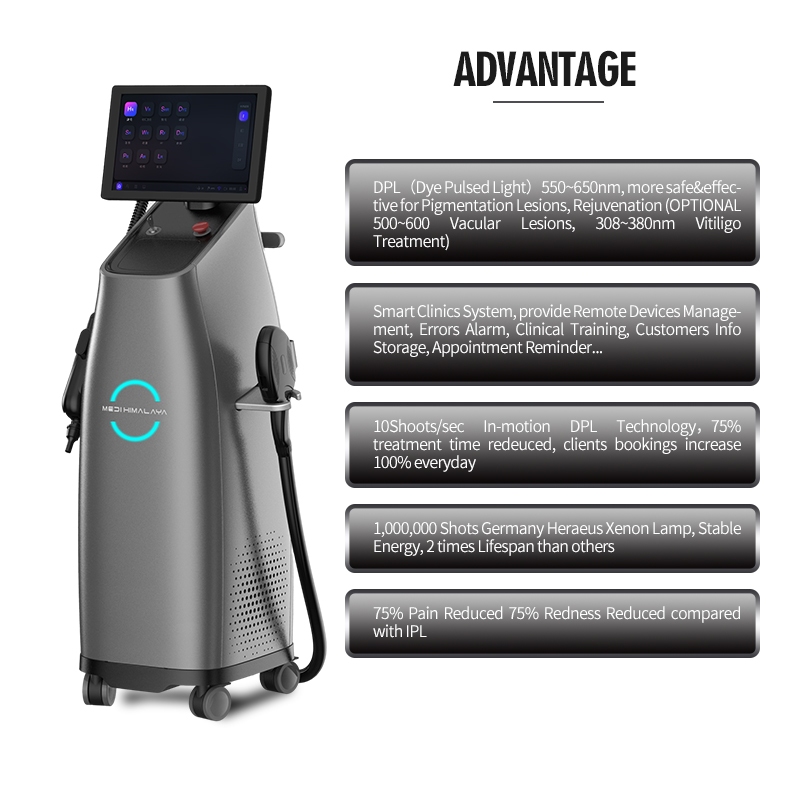

Machine Advantage
Multifunctional system, IPL, DPL, SHR optional
15.6’ Android screen smart clinics system
Handpiece features a 10x high-definition skin analyzer.
Product parameters:
| Operating System | 15.6Android Screen |
| Model No. | MED-230LUX |
| IPL Peak Power | 3500W |
| Handpiece Number | Total 2;(1 DPL Handpiece,1 Laser Handpiece) |
| Wavelength | DPL550~650nm;Laser 1064+532+1320nm standard |
| DPL500~600nm/308~380nm/SHR650~950nmoptional | |
| IPL12*33(430/530/640nm)Optional | |
| EnergyDensity(Fluence) | 1-26J/cm²(DPL),1-1500mJ(Laser) |
| Spot Size | 15x50mm(DPL)，2~8mm(Laser) |
| Pulse Duration | 1-15ms |
| Pulse | Single |
| Pulse Repetition Rate | 1-10Hz |
| Timer | 1-30ms |
| Cooling | Air+Water+Sapphire contactcooling(-4°C~+4°℃) |
| Stand-by Working | Continuously for 12 hours |
| Net Weight | 50KG |
| Dimensions(WxLxH) | 390x435x1310mm |
     |     |
| |
| Operating System | 15.6Android Screen |
| Model No. | MED-230LUX |
| IPL Peak Power | 3500W |
| Handpiece Number | Total 2;(1 DPL Handpiece,1 Laser Handpiece) |
| Wavelength | DPL550~650nm;Laser 1064+532+1320nm standard |
| DPL500~600nm/308~380nm/SHR650~950nmoptional | |
| IPL12*33(430/530/640nm)Optional | |
| EnergyDensity(Fluence) | 1-26J/cm²(DPL),1-1500mJ(Laser) |
| Spot Size | 15x50mm(DPL)，2~8mm(Laser) |
| Pulse Duration | 1-15ms |
| Pulse | Single |
| Pulse Repetition Rate | 1-10Hz |
| Timer | 1-30ms |
| Cooling | Air+Water+Sapphire contactcooling(-4°C~+4°℃) |
| Stand-by Working | Continuously for 12 hours |
| Net Weight | 50KG |
| Dimensions(WxLxH) | 390x435x1310mm |
