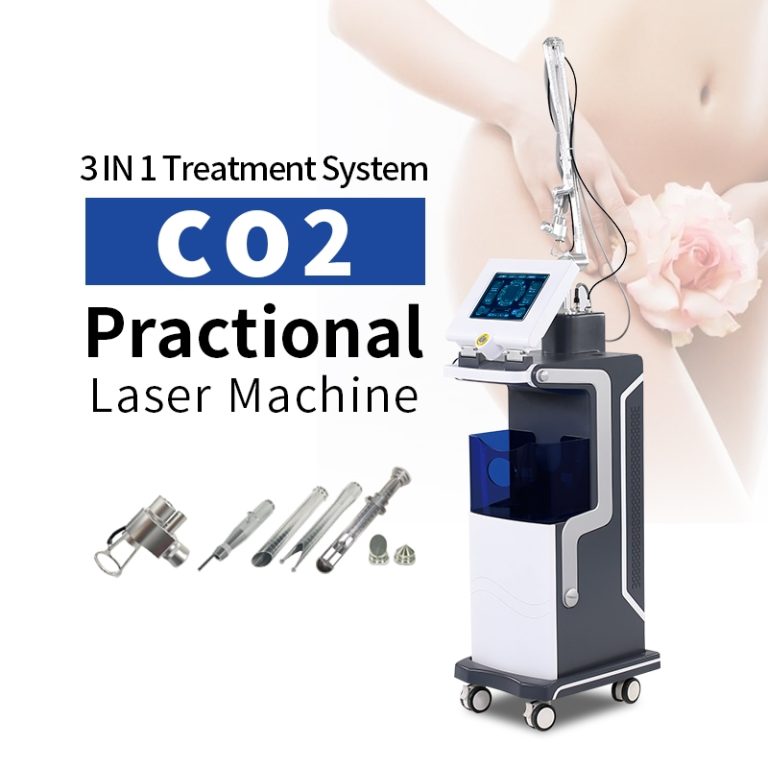

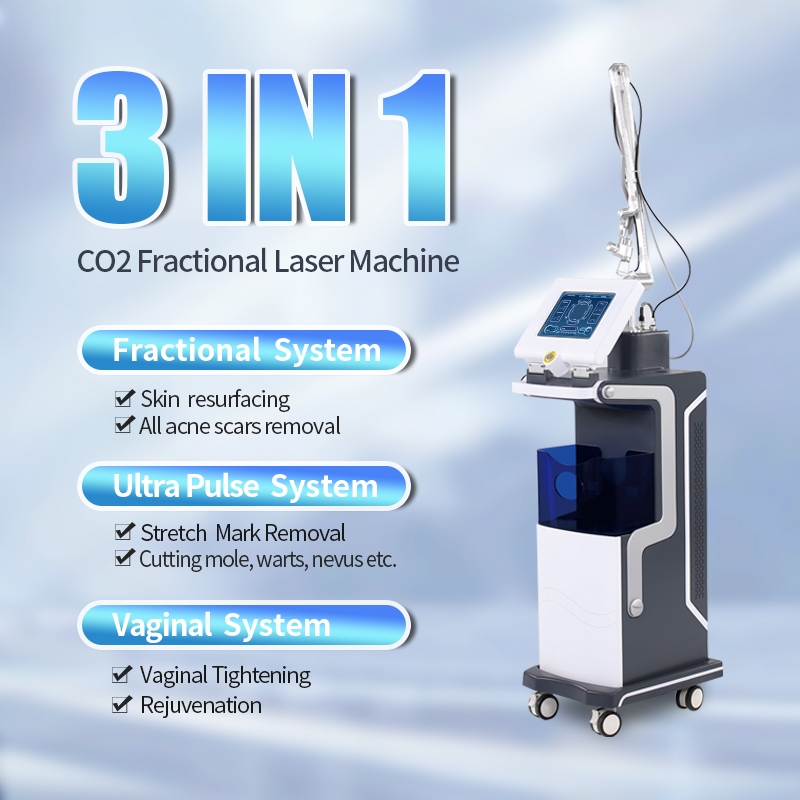

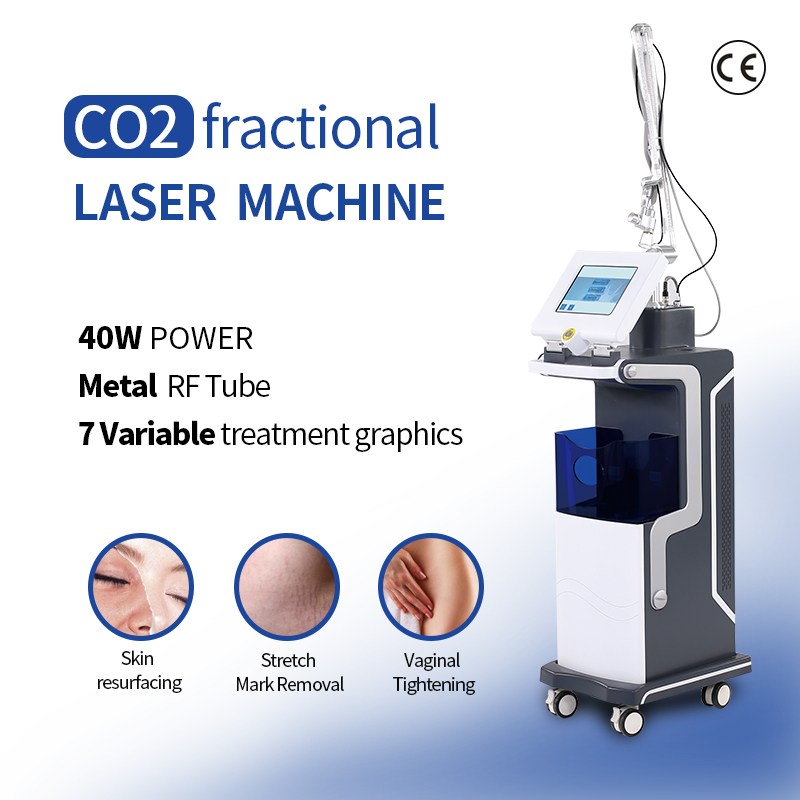

CO2 fractional laser is the gold standard in skin regeneration. It combines ablative and fractional technologies to remove wrinkles, scars, pigmentation, and skin texture issues. Additionally, this laser can be equipped with a handpiece for intimate treatments to improve vaginal problems in women.
Working Principle:
It emits a specific wavelength of light (10,600 nm) that is intensely absorbed by the water molecules present in skin cells.
Instead of treating the entire skin surface, the laser beam is split into a grid of microscopic, focused columns. These are known as Microscopic Thermal Zones. Within each MTZ, the laser energy causes immediate vaporization of the targeted tissue, creating precise micro-wounds.
The body’s natural healing response is then triggered. Surrounding healthy tissue facilitates rapid repair, promoting the regeneration of new collagen and elastin fibers. This process of controlled damage and subsequent remodeling leads to significant skin resurfacing, effectively addressing wrinkles, scars, and other textural irregularities.

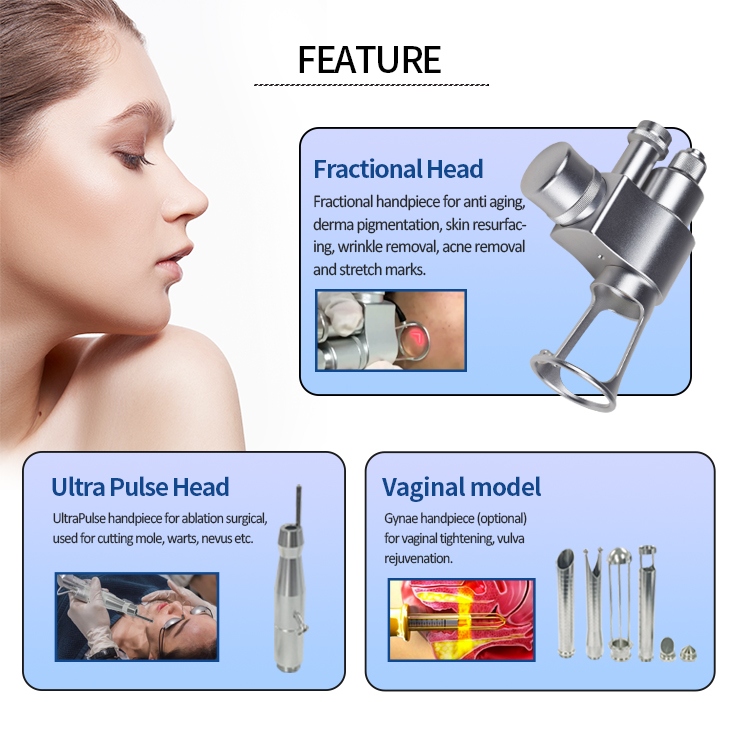

Function:

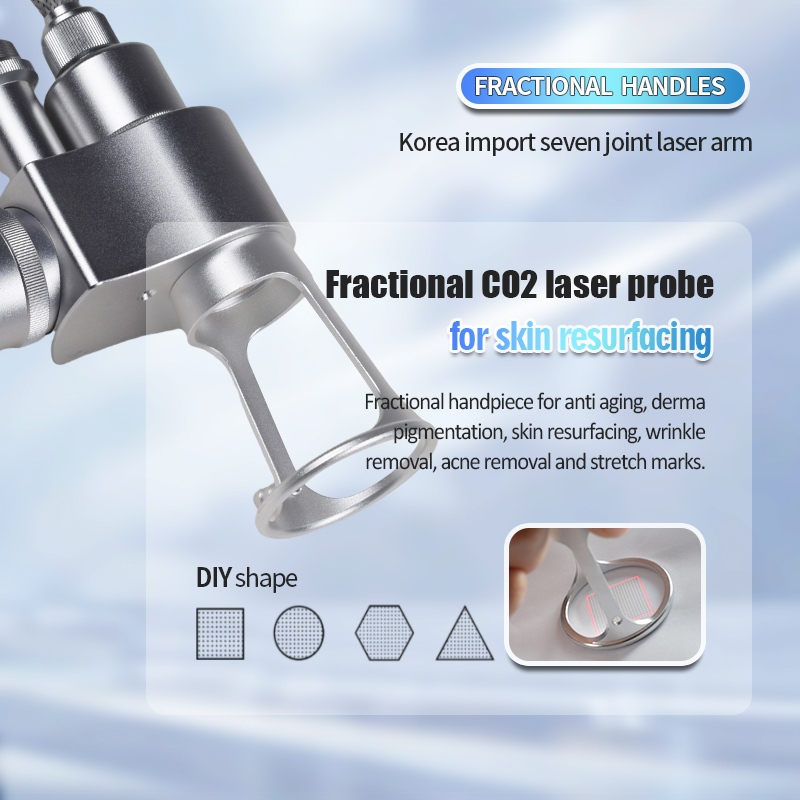

1.Fractional CO2 Laser Handpiece
Skin Rejuvenation/ Acne Removal/ Scar Removal/ Strech Marks Removal

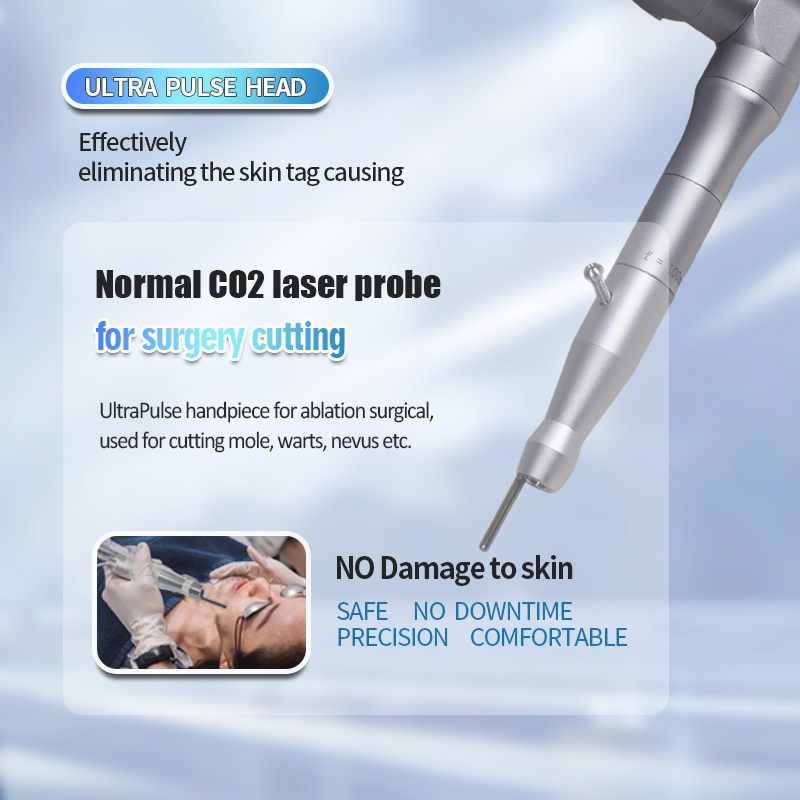

2.UltraPulse Handpiece
Surgical Cutting: Nevus/Spot/ Wart

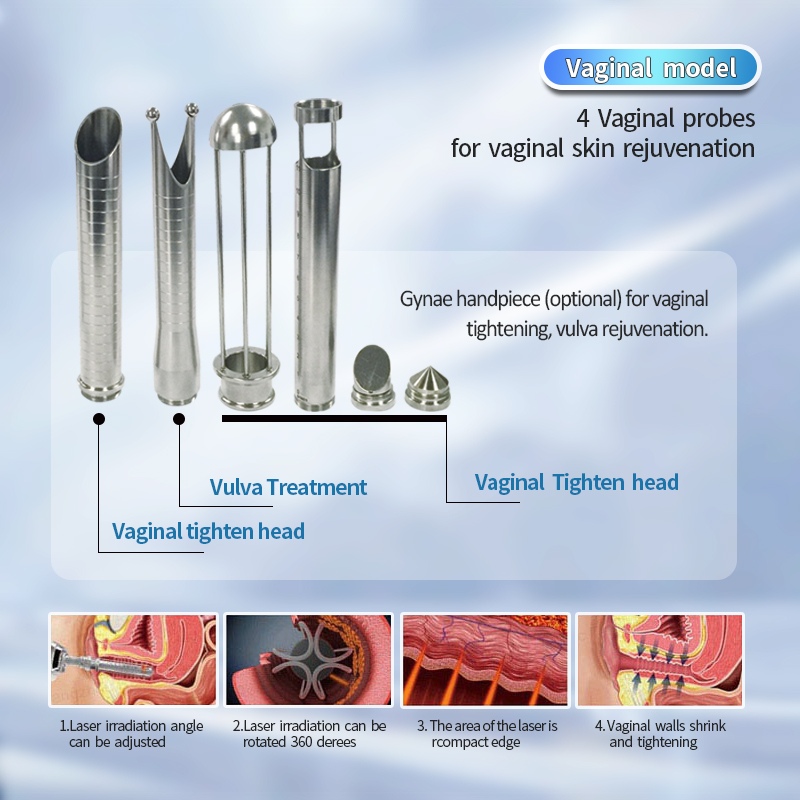

3.Gynae handpiece
Vaginal Tightening/ Vaginal Rejuvenation/ Vulva Whitening

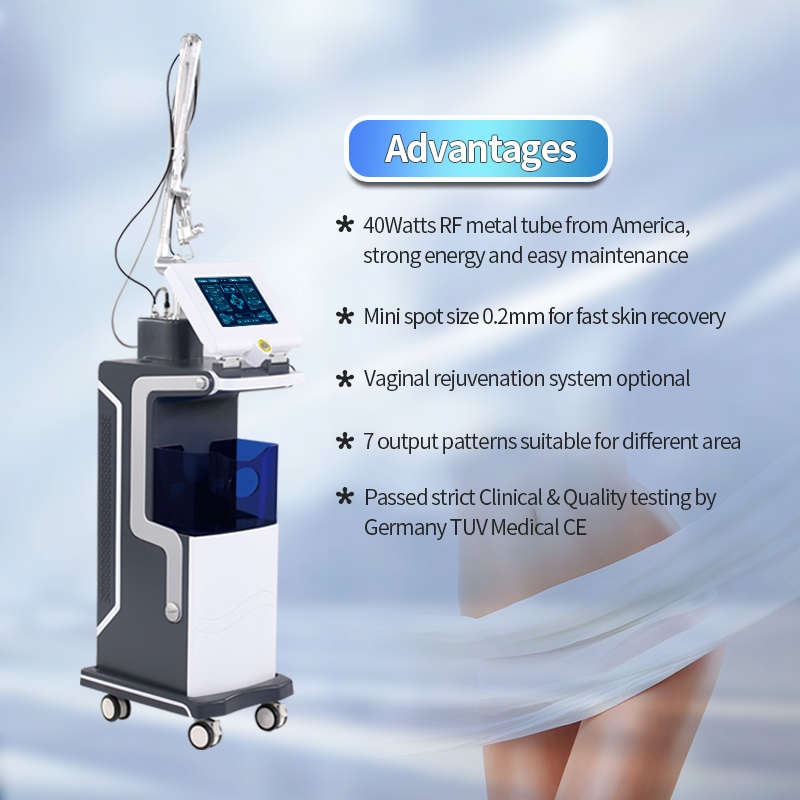

Machine Advantage:
Product Attributes:
| Wavelength | 10.64um |
| Power Output | 1-40W |
| Laser Type | UltraPulse; CW; Fractional |
| Spot Size | 0.12mm & 1.25mm (adjustable) |
| Spot Density | Up to 102400 dot |
| Scan Size | Up to 20x20mm |
| Scan Shapes | Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line |
| Beam Patterns | Standard; Random; Scatter |
| Aiming Beam | 5mW red diode laser, 635nm, adjustable intensity, blink on/off |

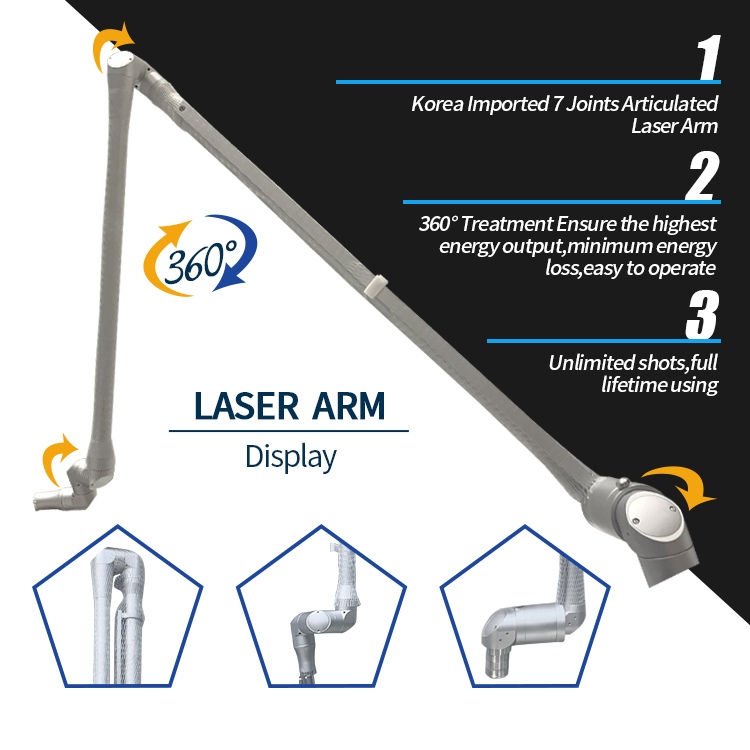

| Beam Delivery | Articulated 7-joint arm with up to 360° rotation |
| Cooling | Self-contained, closed cycle |
| Stand-by Working | Continuously for 18 hours |
| Display | 10.4″ True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 52 kgs |
| Dimensions (WxDxH) | 52*38*117cm |
![]() ![]() ![]() | ![]() ![]() ![]() |
![]() | ![]() |
| Wavelength | 10.64um |
| Power Output | 1-40W |
| Laser Type | UltraPulse; CW; Fractional |
| Spot Size | 0.12mm & 1.25mm (adjustable) |
| Spot Density | Up to 102400 dot |
| Scan Size | Up to 20x20mm |
| Scan Shapes | Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line |
| Beam Patterns | Standard; Random; Scatter |
| Aiming Beam | 5mW red diode laser, 635nm, adjustable intensity, blink on/off |
| Beam Delivery | Articulated 7-joint arm with up to 360° rotation |
| Cooling | Self-contained, closed cycle |
| Stand-by Working | Continuously for 18 hours |
| Display | 10.4″ True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 52 kgs |
| Dimensions (WxDxH) | 52*38*117cm |

Advantage :

Mode I:Fractional System
Application:
Skin Resurfacing
Scar removal , acne scars , burnt scars and surgery scars ,etc .
Wrinkle removal ,Stretch mark ,age spots ,freckles ,wart etc removal
Collagen stimulation
Dermatological surgery

Mode II: VRL System
Application:
Vaginal rejuvenation
vaginal tightening
improve vaginal lubrication and sensitivity.
