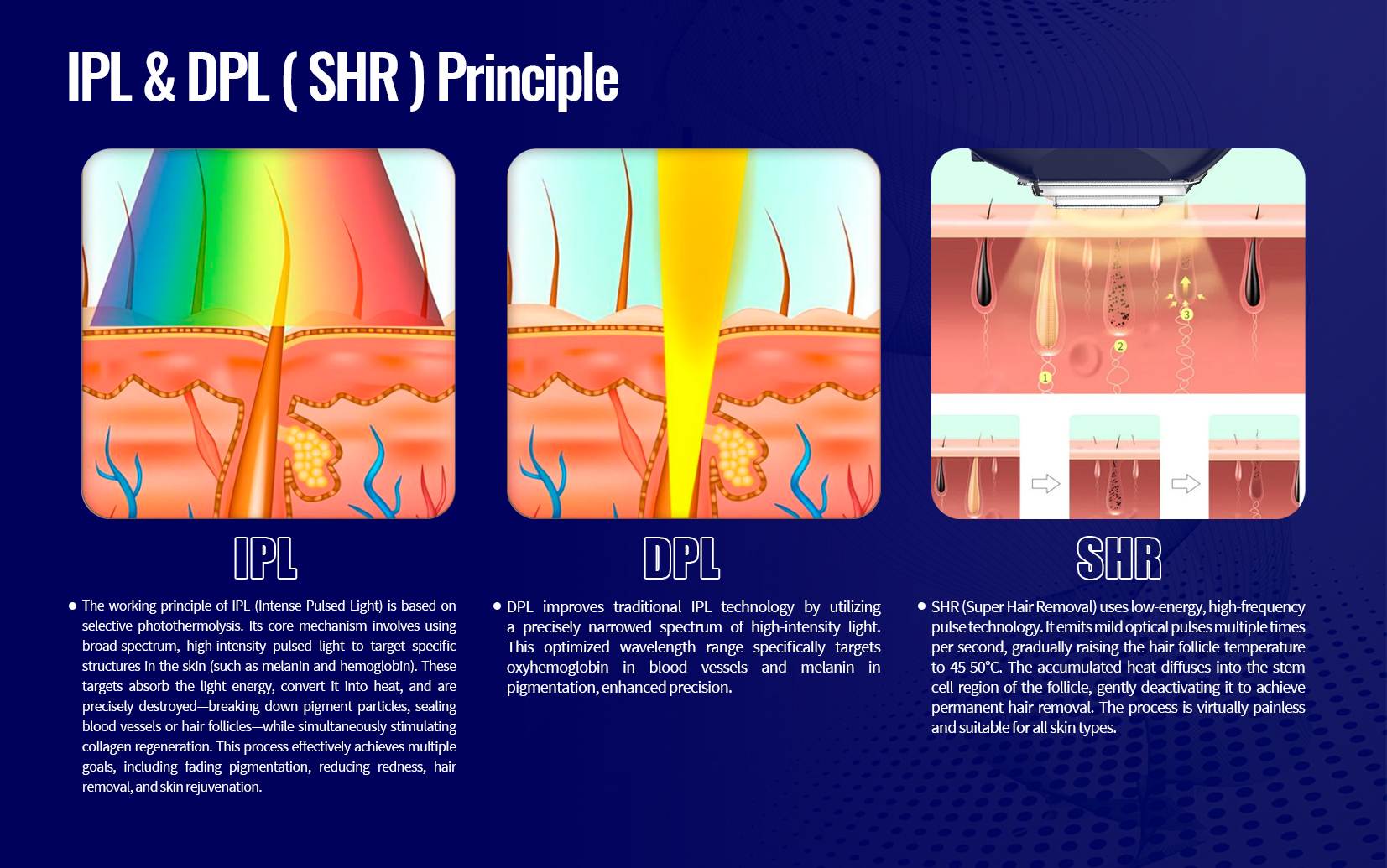

This device is based on the principle of “selective photothermolysis” and uses intense pulsed light technology to achieve precise treatment of skin problems:
IPL: Through broad-spectrum, high-intensity pulsed light, it is selectively absorbed by target chromophores such as melanin and hemoglobin in the skin and
converted into heat energy. This breaks down pigmentation, closes blood vessels or hair follicles, and simultaneously stimulates collagen regeneration,
achieving multiple effects such as skin rejuvenation, fading dark spots, reducing redness, and hair removal.
This device is based on the principle of “selective photothermolysis” and uses intense pulsed light technology to achieve precise treatment of skin problems:
IPL: Through broad-spectrum, high-intensity pulsed light, it is selectively absorbed by target chromophores such as melanin and hemoglobin in the skin and
converted into heat energy. This breaks down pigmentation, closes blood vessels or hair follicles, and simultaneously stimulates collagen regeneration,
achieving multiple effects such as skin rejuvenation, fading dark spots, reducing redness, and hair removal.
DPL: Based on IPL, it optimizes the spectral range, using a narrower wavelength of light energy to precisely target hemoglobin and pigmentation, making
it especially suitable for vascular skin problems.
SHR: Utilizing low-energy, high-frequency pulsed light technology, it gently heats the skin to 45–50°C, accumulating heat on the hair follicle stem cell
area to achieve painless and long-lasting hair removal results.
1.Hair removal
2.Skin rejuvenation, whitening, and anti-aging
3.Pigmentation treatment (freckles, melasma, etc.)
4.Vascular treatment
5.Acne and acne scar improvement
6.Sensitive skin repair
AI Intelligent System
Full-process voice guidance, easy operation even for beginners, improving treatment safety.

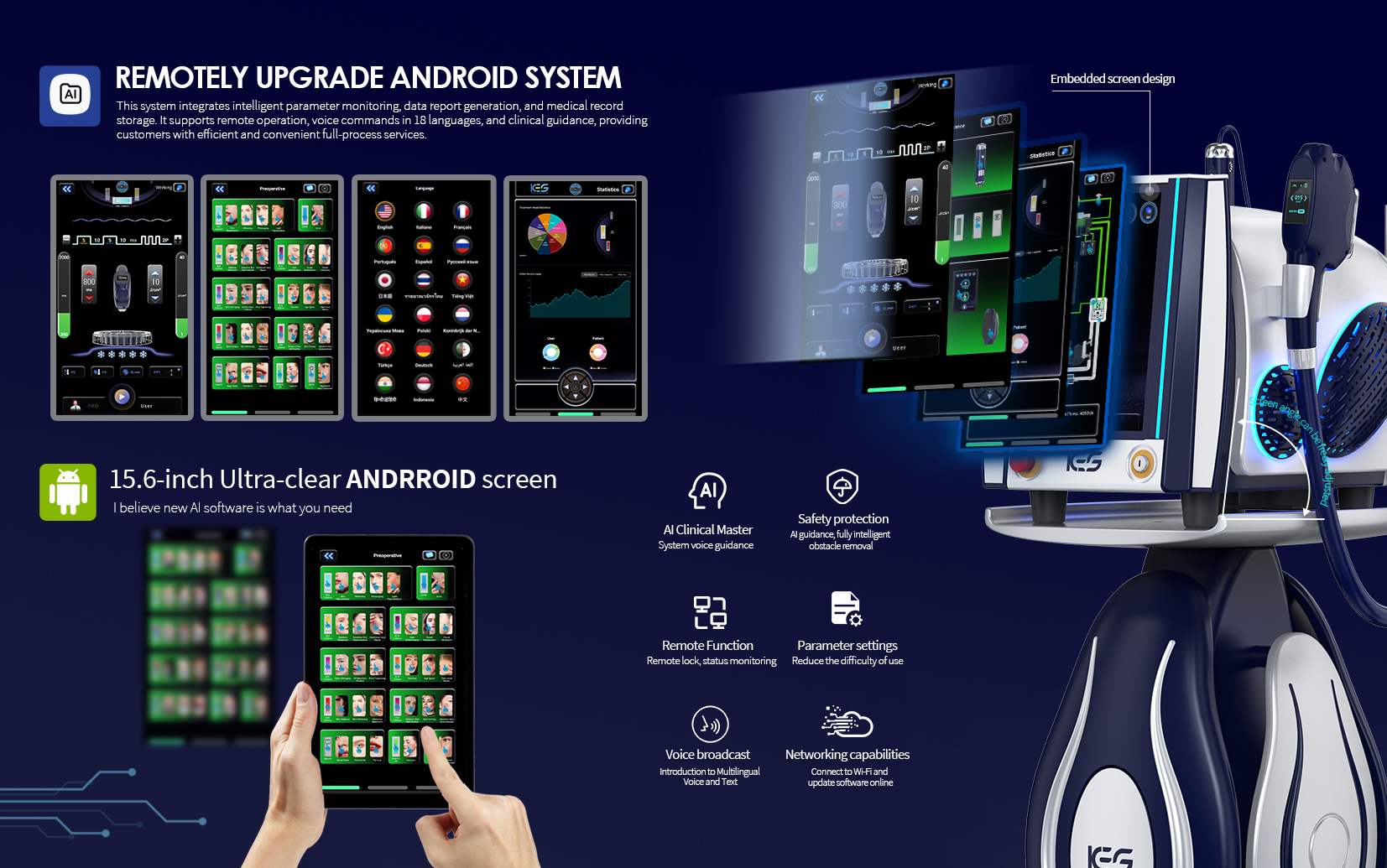

Dual-Screen Interaction Design
15.6-inch Android main screen + 2-inch touchscreen on the handle for convenient operation.
High-Efficiency and Stable Output

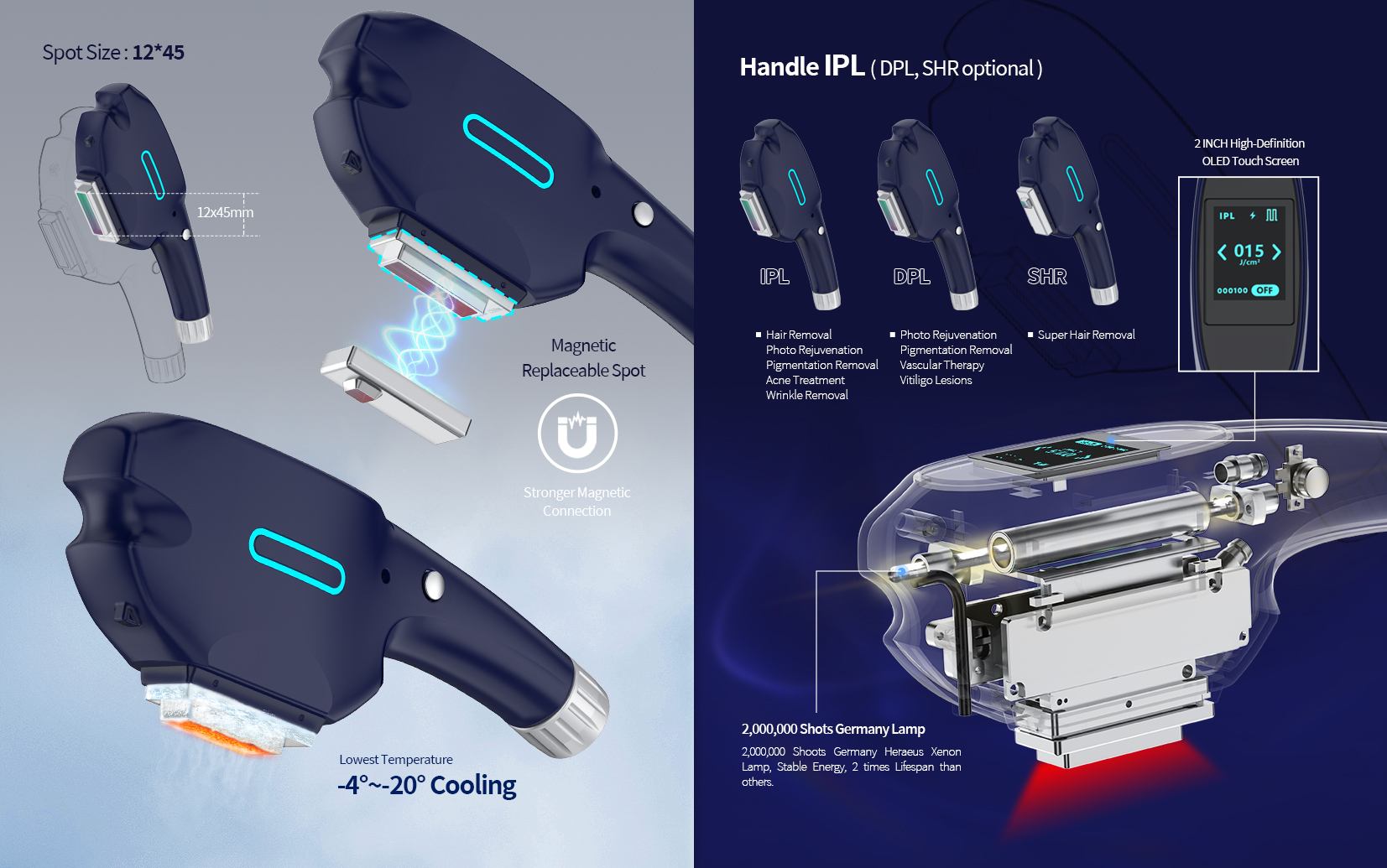

Uses imported German xenon lamps with a flash lifespan of 2 million flashes, ensuring stable and sustained energy.

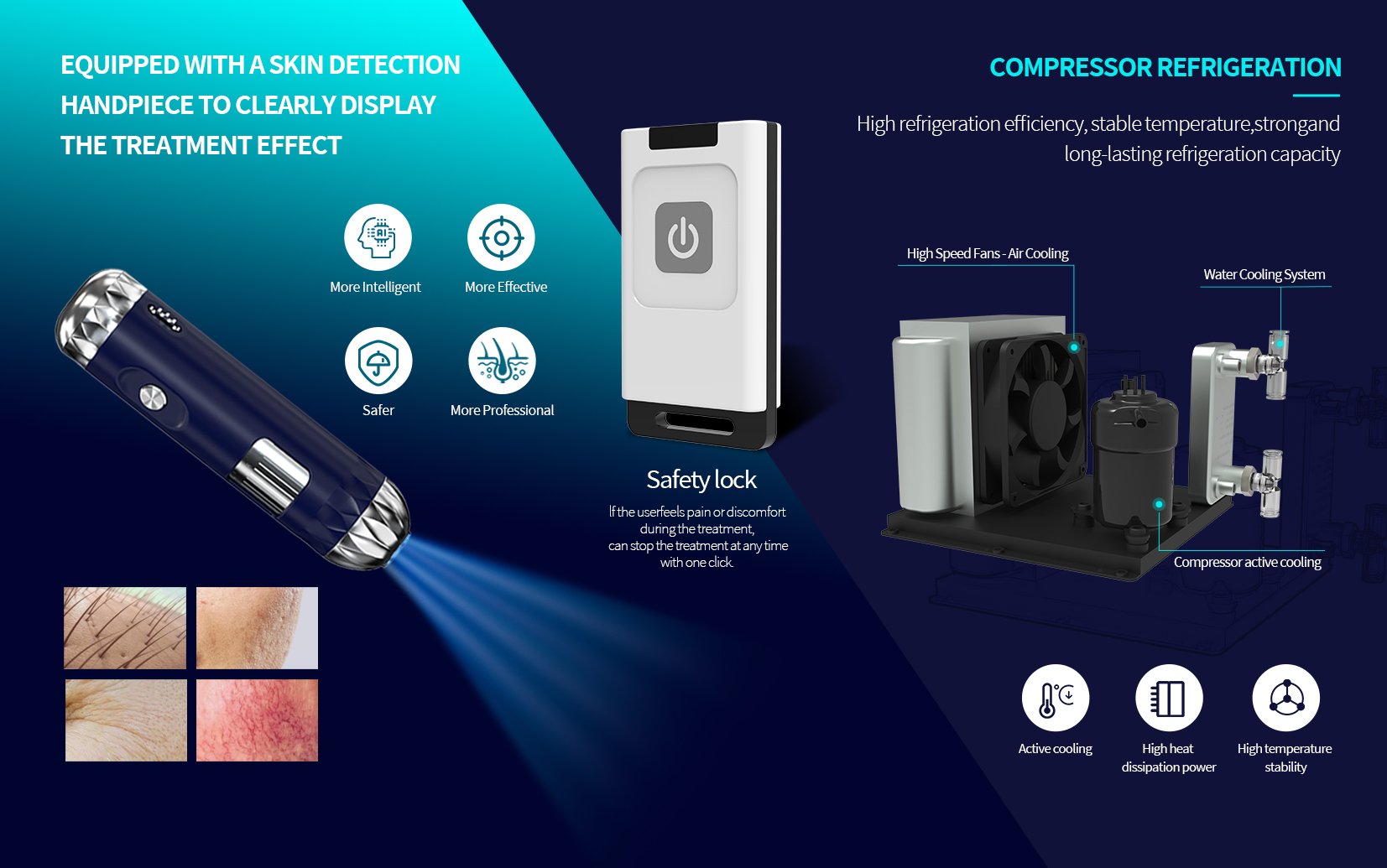

Multi-Level Cooling System
Powerful and stable cooling, providing a comfortable low temperature throughout treatment and protecting skin safety.

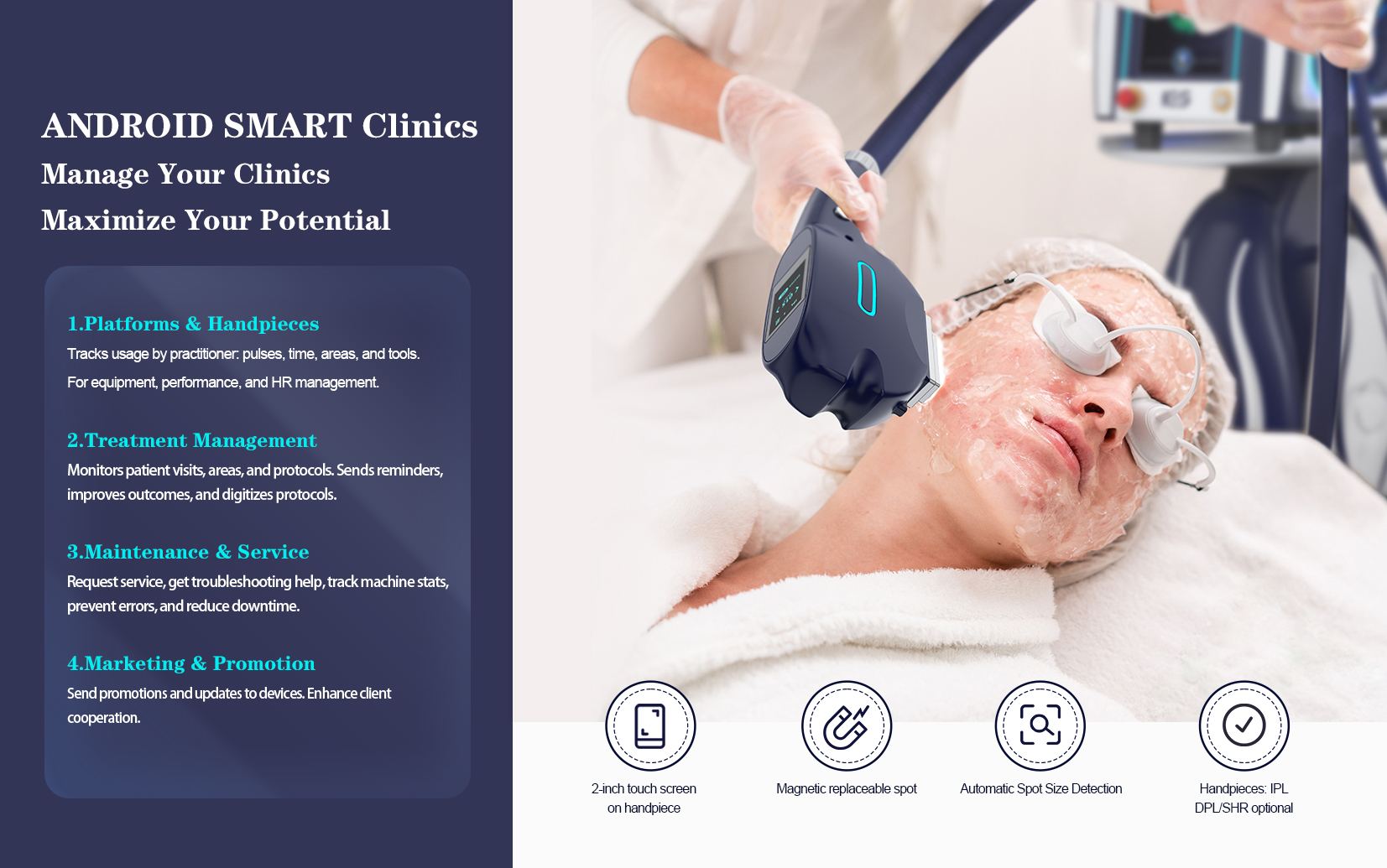

Remote Upgrade and Management
Supports remote system upgrades, multi-site data sharing, and real-time equipment status monitoring.

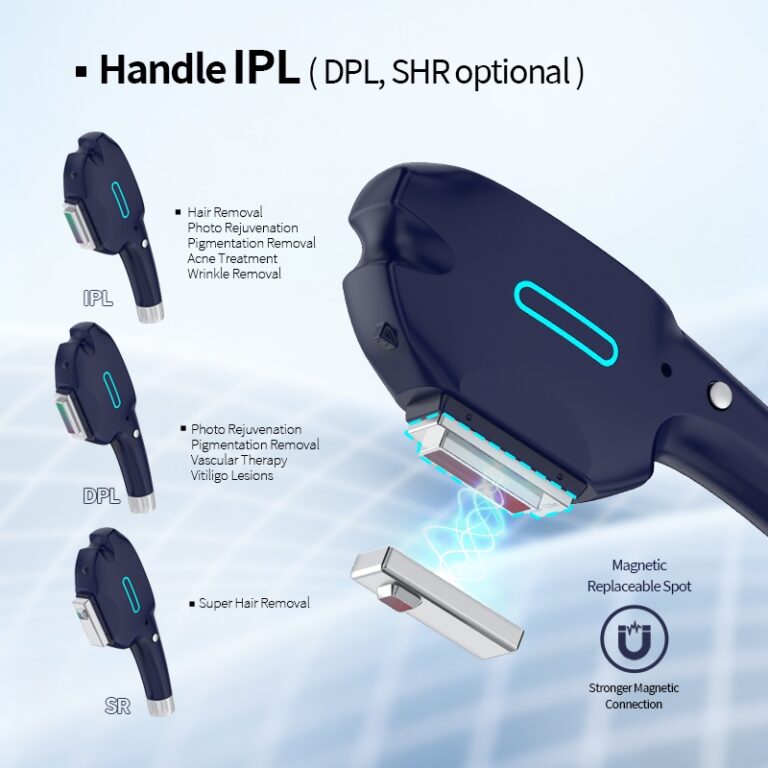

Modular Treatment Head
Magnetic quick-change, supporting IPL, DPL, SHR, and other optional functions.

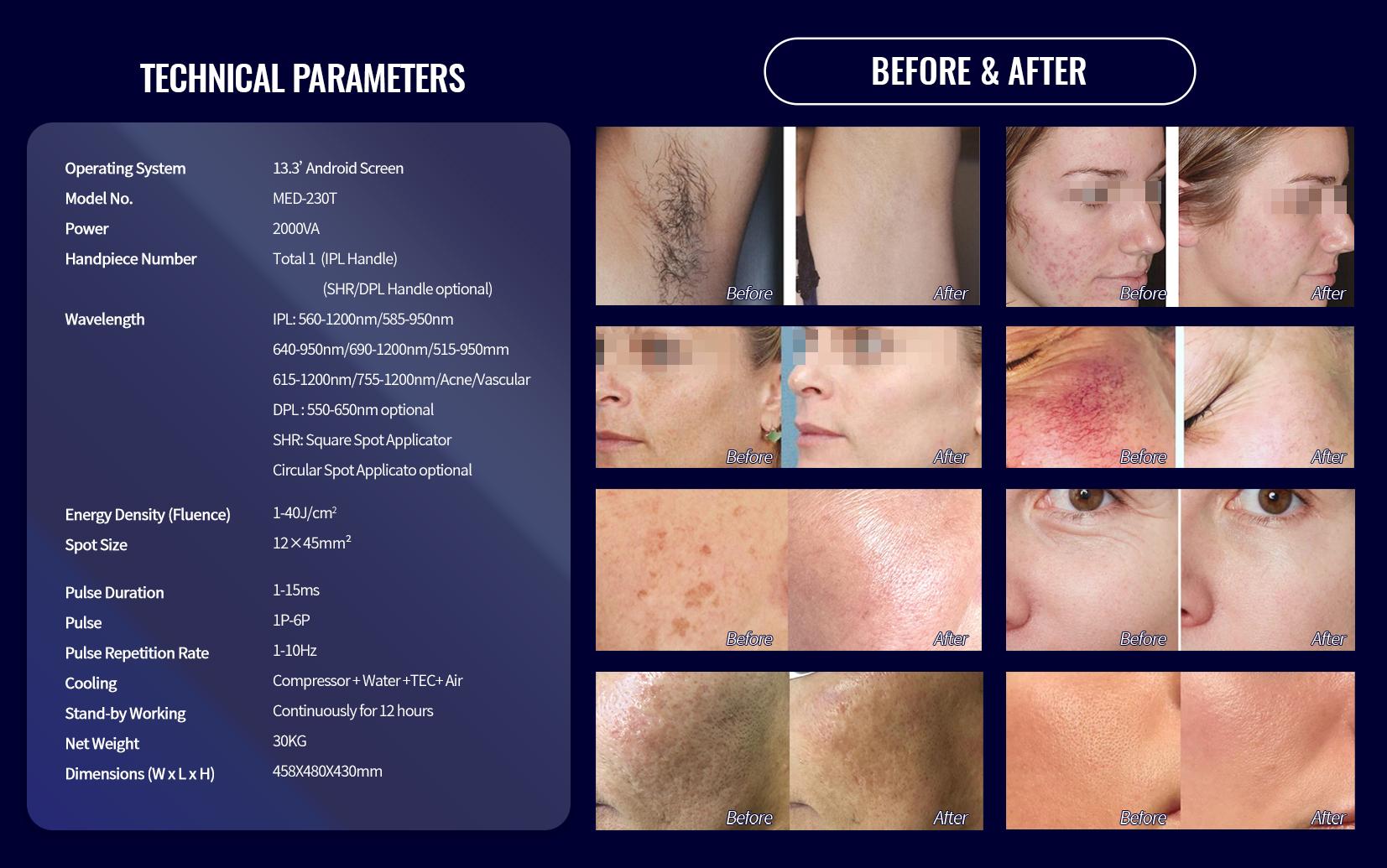

| Operating System | 13.3’Android Screen |
| Model No. | MED-230T |
| Power | 2000VA |
| Handpiece Number | Total 1 (IPL Handpiece)
(SHR/DPL Handpiece optional) |

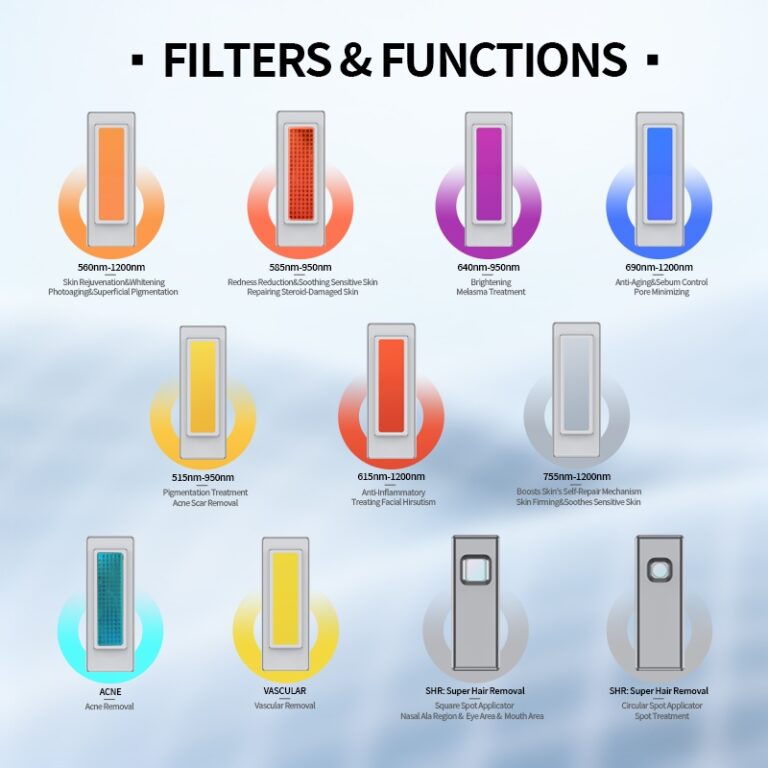

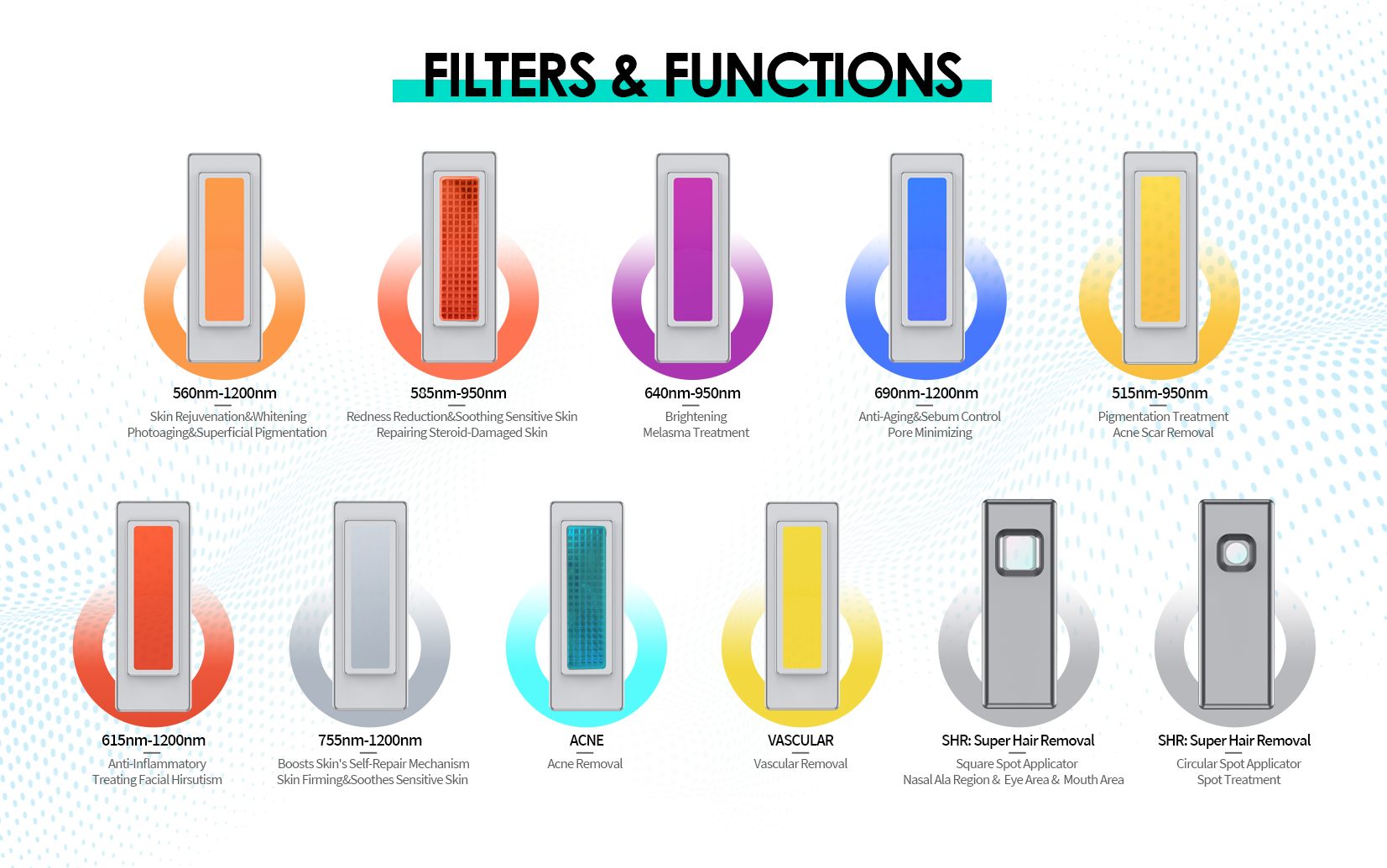

| Wavelength | IPL: 560-1200nm/585-950nm/640-950nm/690-1200nm/515-950nm/615-1200nm/755-1200nm/Acne/Vascular
DPL: 550-650nm optional SHR: Square Spot Applicator/ Circular Spot Applicator optional |
| Energy Density(Fluence) | 1-40J/cm² |
| Spot Size | 12*45mm² |
| Pulse Duration | 1-15ms |
| Pulse | 1P-6P |
| Pulse Repetition Rate | 1-10Hz |
| Cooling | Compressor+Water+TEC+ Air |
| Stand-by Working | Continuously for 12 hours |
| Net Weight | 30KG |
| Dimensions | 45*48*43 |
